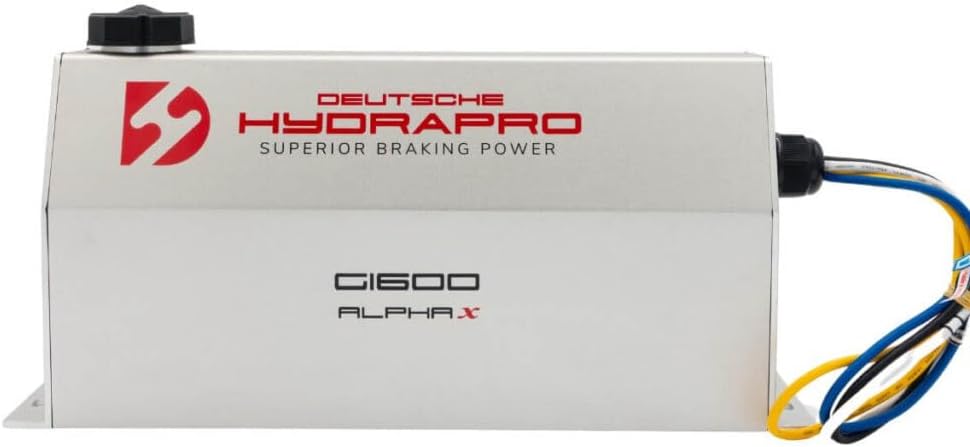

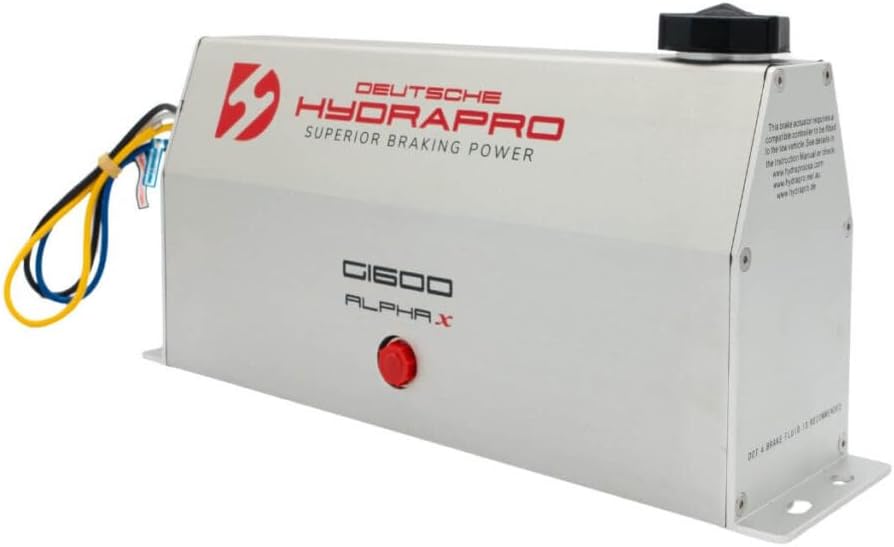

Alpha G1600X (1600psi) EOH Brake Actuator for Trailer Disc Brakes Extra-Large Reservoir

Introducing the Alpha G-1600X, the powerful, high-volume trailer brake actuator you've been waiting for. With 28.7oz of total reservoir capacity, it's got more than enough power to tackle even your most demanding towing needs. The larger fluid capacity can accommodate multi-axle trailers and applications with longer brake lines requiring extra hydraulic power. Experience the convenience of quick setup and easy installation while enjoying peace of mind knowing our stringent quality control process ensures optimum performance. Make the G-1600X your go-to EOH Brake Actuator for trailered applications today! In addition, all Deutsche Hydrapro 1600psi brake actuators have a swift response time, reaching 1000psi in 0.118 seconds. Specifications: Model: Alpha G-1600X EOH brake actuator SKU: G1600X-Alpha DOT compliant Trailer Mounted Application: Trip and quad axle trailers with disk brakes Distance between mounting holes: 13.39” & 1.38” (278mm & 35mm) Mounting Hole Diameter 1.2cm x 0.8cm (12mm x 8mm) slot Hydraulic Port Size: 3/16 inverted flare (standard brake line fitting) DOT 3 & DOT 4 Brake Fluid Compatible (Do not use Super DOT 4 or DOT 4+) Power: 12V DC (min 30 amp feed) Max Current Draw at full pressure approximately 18-24 amps. Wire Configuration: Black: 12-volt power Blue: brake controller Yellow: breakaway White: ground Wire Gauge Recommendation A minimum of 10 gauge on black and white A minimum 12 gauge on blue and yellow Dimensions: Length: 16.45” (418mm) Height: 6” (152mm) Width: 3.6” Base / 1.7” Top (90mm Base / 44mm Top) Mounting Centres: 10.9” Length and 1.6” Width (275mm Length and 40mm Width)

• Application: Triple Axle & Quad Axle Trailers with Disc Brakes
• 28.7oz Extra-Large Reservoir Capacity
• High-powered DC motor and quality pump with minimal moving parts
• Weatherproof, anodized alloy case to protect components from external elements (such as saltwater, extreme temperatures, and poor road conditions)
• Meets all IP67 requirements
• Anodized, T6-grade extruded alloy housing protects from different environments and has a great aesthetic design
• Independently sealed fluid tank
• Conformal coating on the circuit board is designed to provide extra protection from moisture
