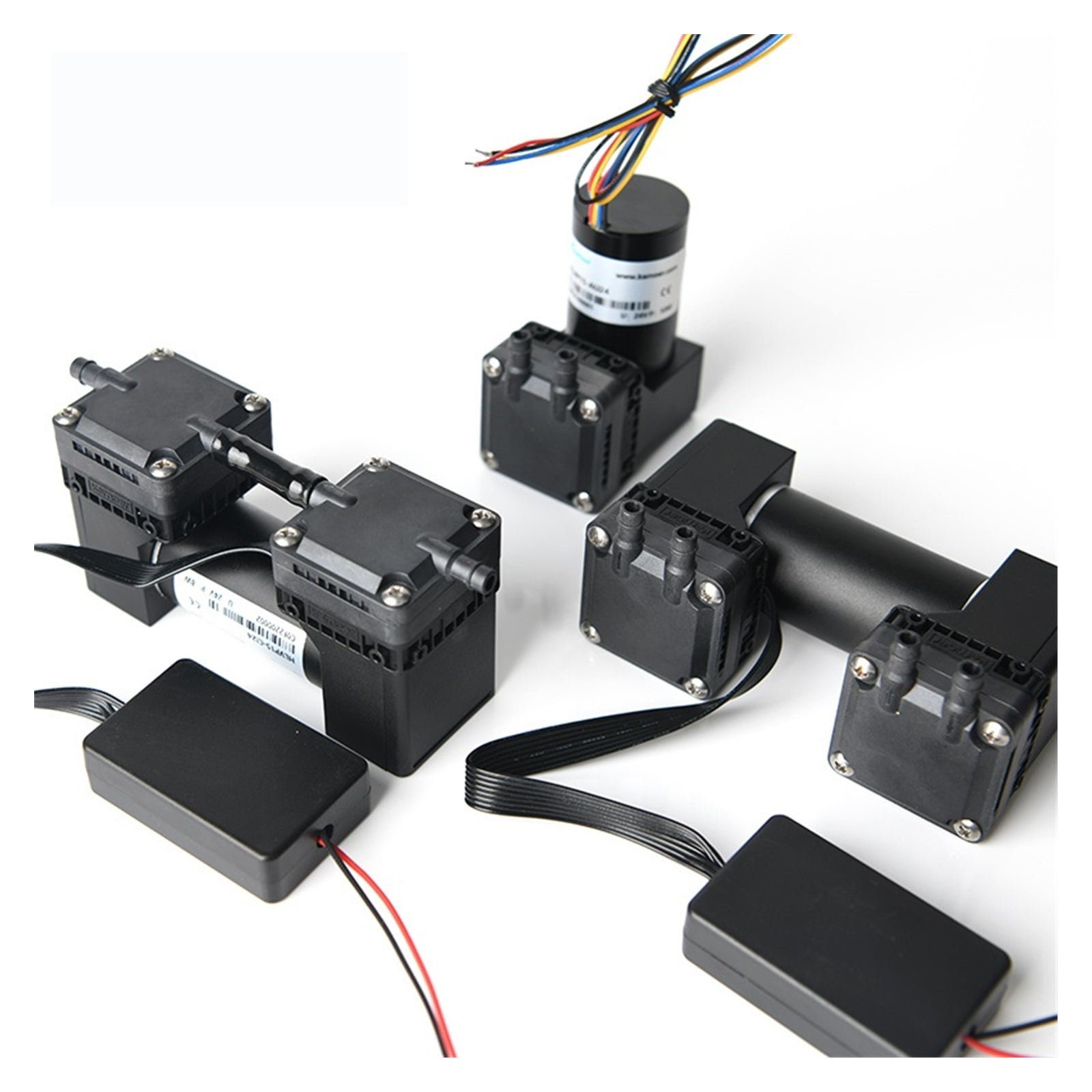

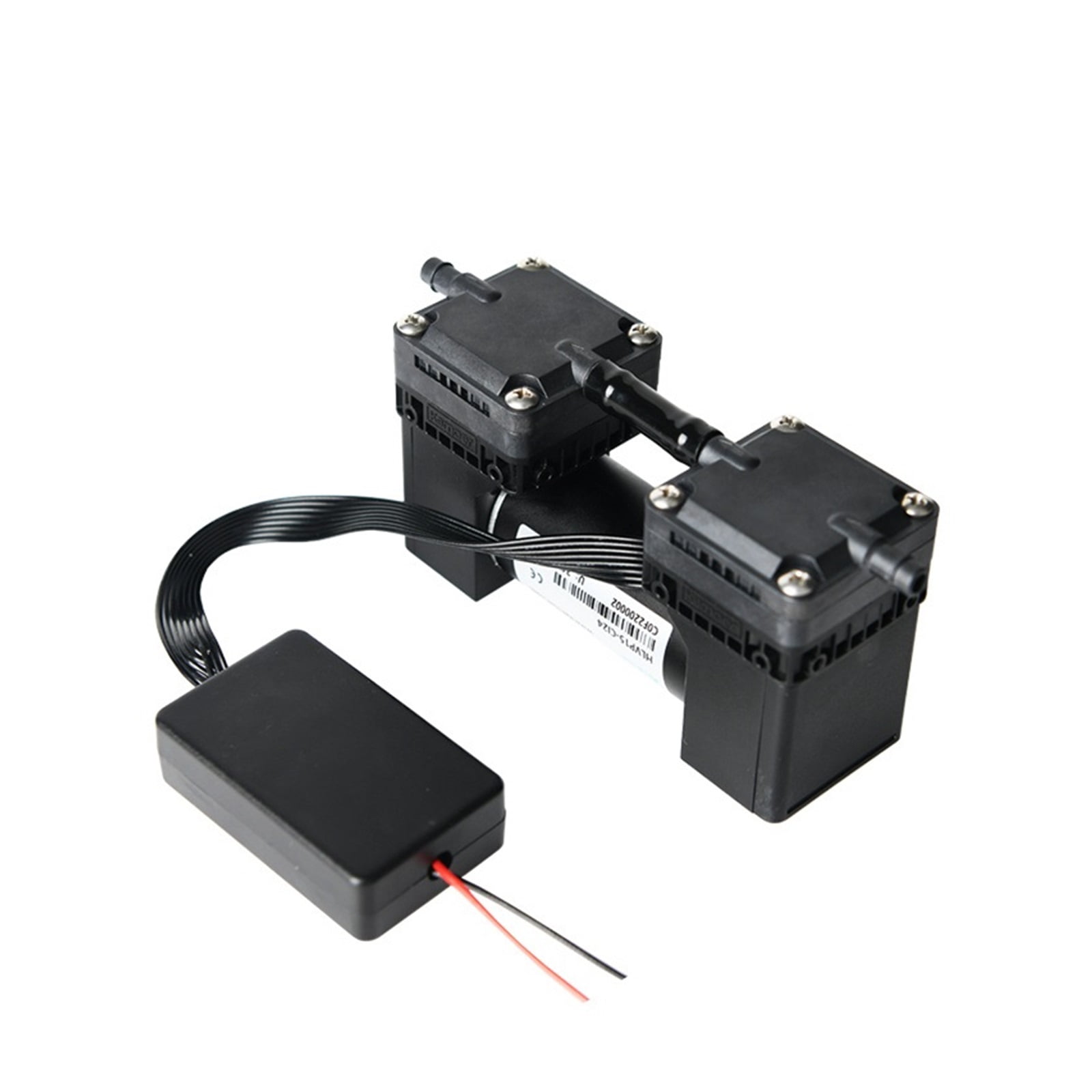

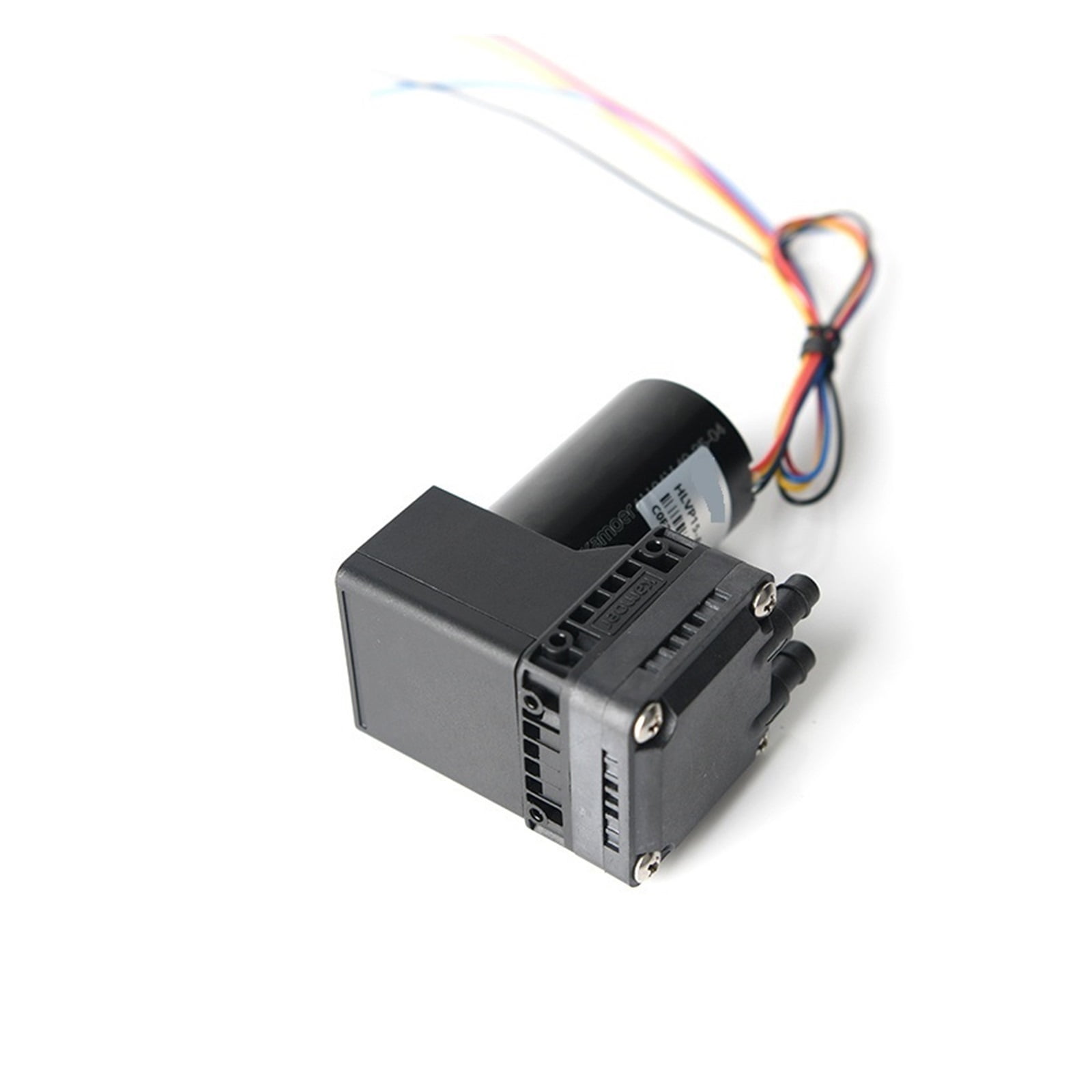

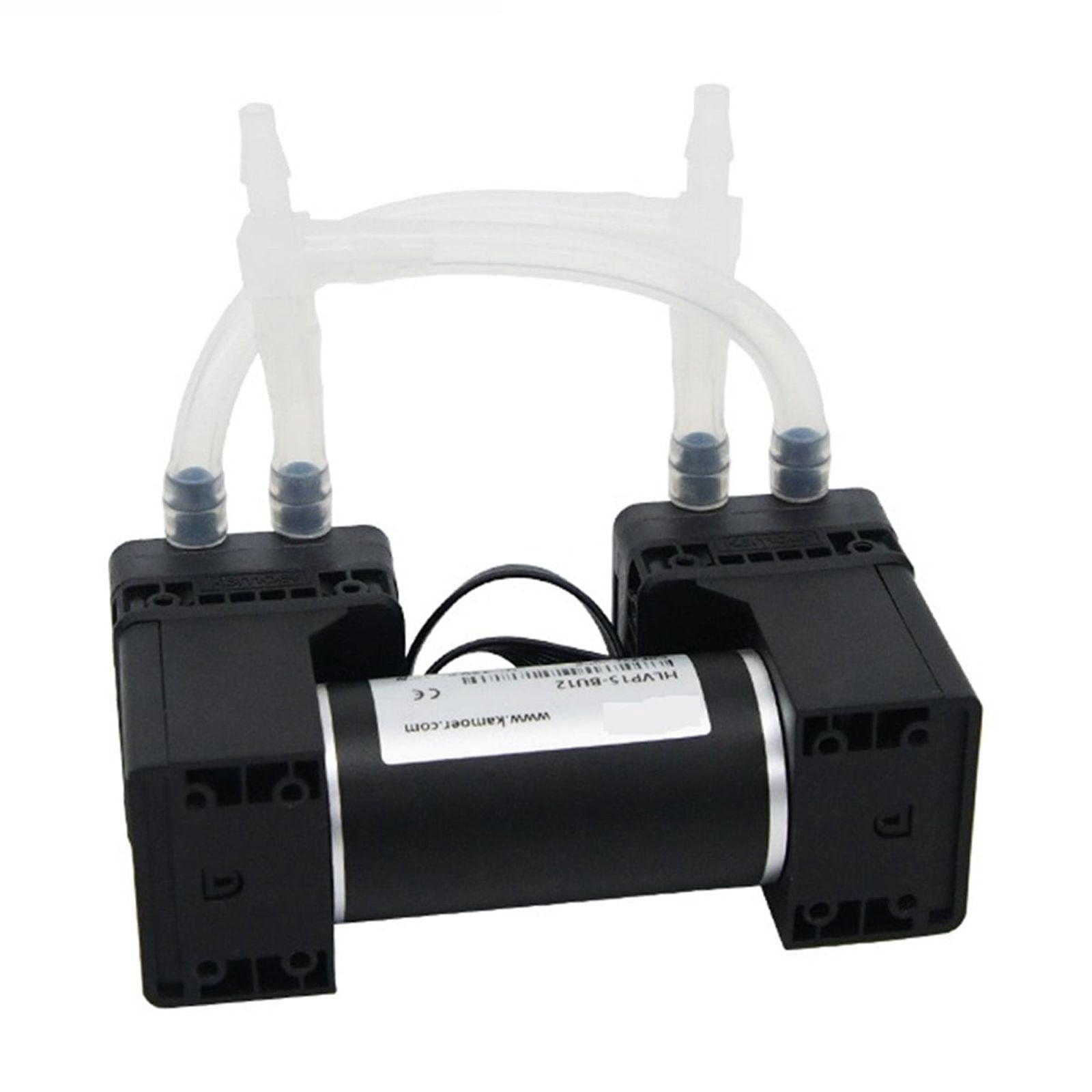

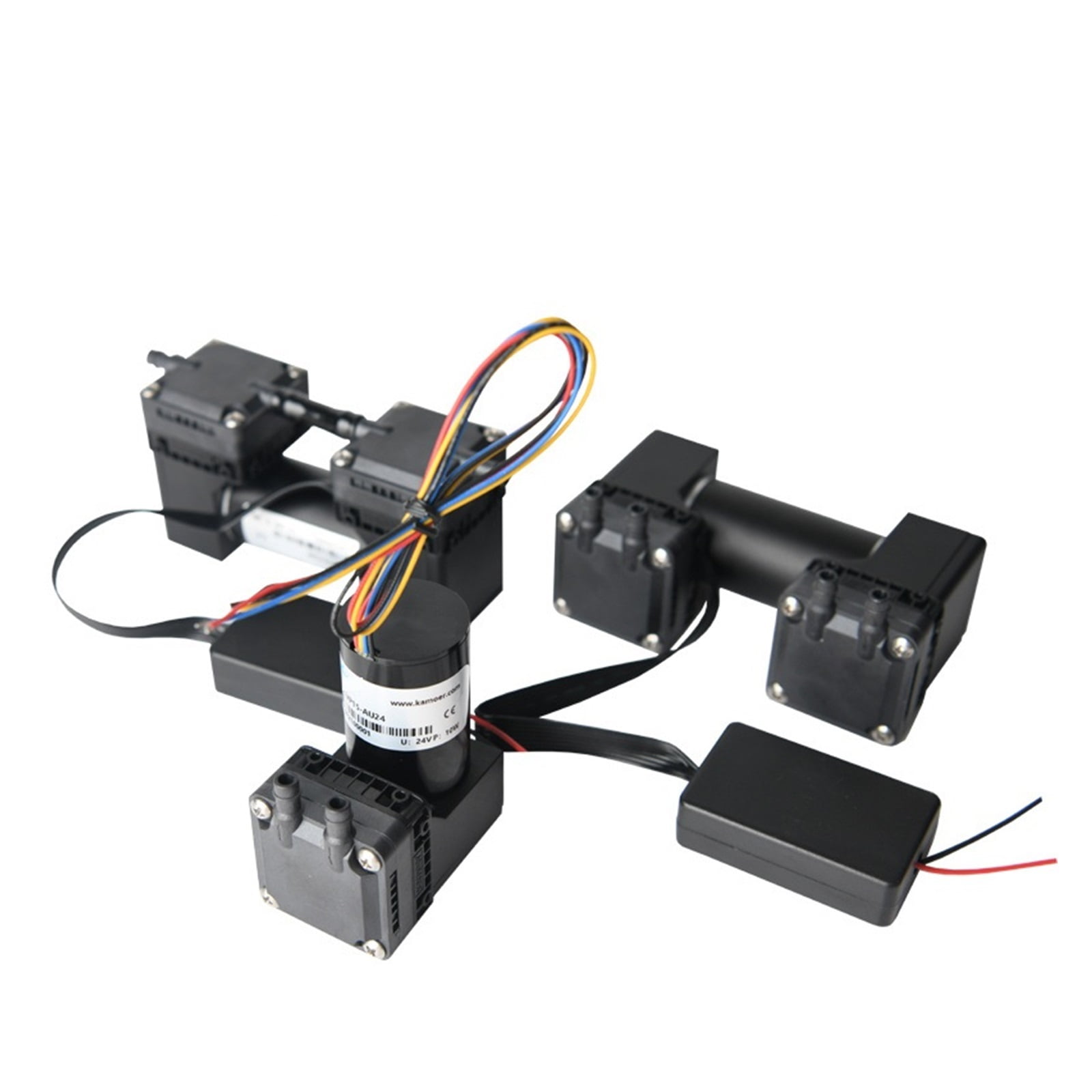

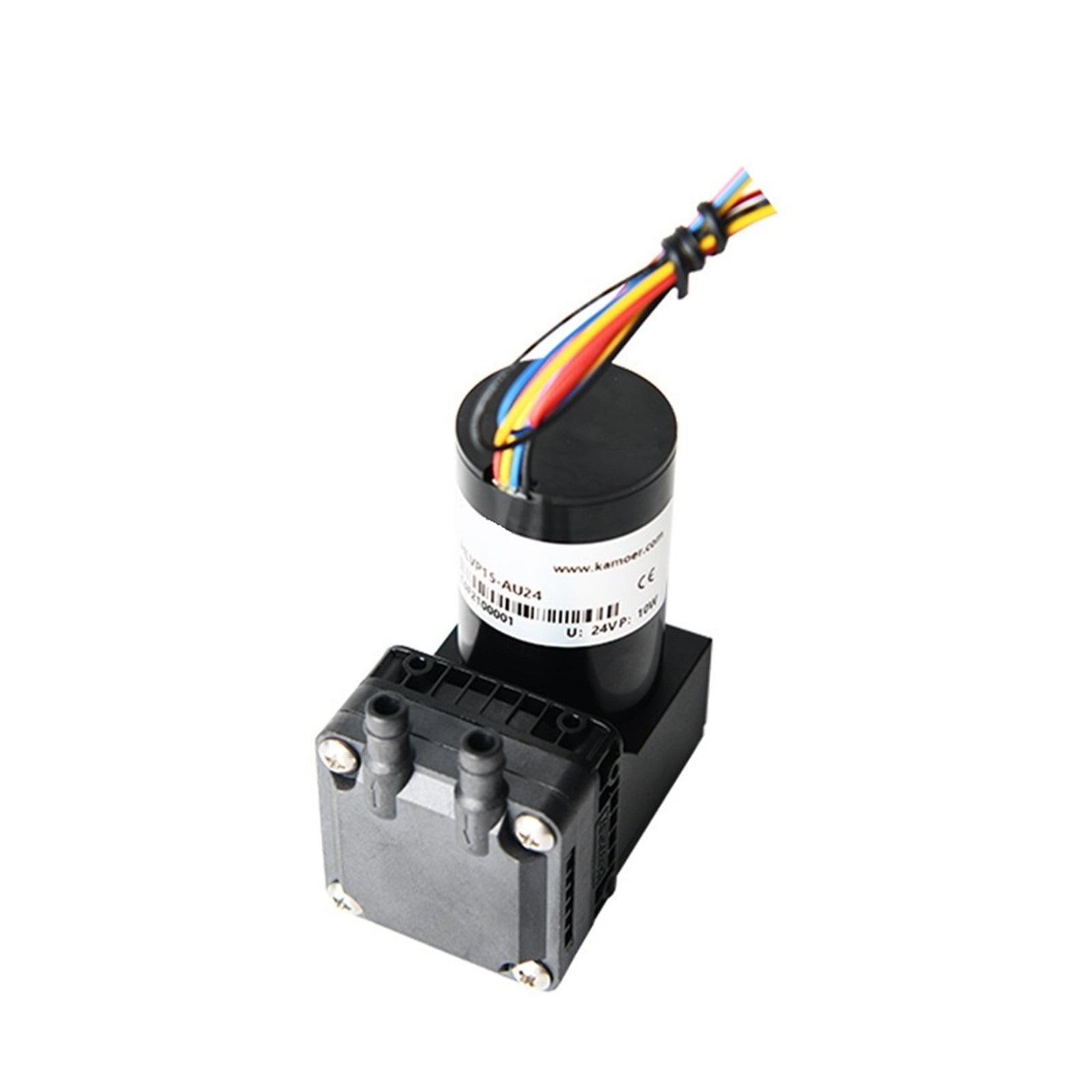

12V / 24V Micro Vacuum Pump Small Diaphragm Pump Electric Vacuum Booster Pump Negative Pressure Pump ,Low Noise

<p>12V / 24V Micro Vacuum Pump Small Diaphragm Pump Electric Vacuum Booster Pump Negative Pressure Pump</p><p></p><p>Basic parameters</p><p>Voltage: 12V / 24V</p><p>motor</p><p>Power: 8W / 10W</p><p>Fluid medium: air; Common gas</p><p>Air flow: 12L / min-16l / min</p><p>Front pressure: 0.12mpa; 0.16Mpa</p><p>Negative pressure: 68kpa; 90Kpa</p><p>Pump head material: PPS</p><p>Lifetime: 8000h</p><p>Operating temperature: 0 ~ 50 </p><p>Humidity: less than 80%</p><p>Protection level: IP 42</p><p>Weight: A: 240g B / C: 360g</p><p></p><p>Multiple applications</p><p>Engine emission test system</p><p>Anti infective circulatory system</p><p></p><p>Gene sequence</p><p>Type: single head pump (low volume)</p><p>Type B: parallel (high AC) diaphragm pump</p><p>Type C: Series (high pressure) diaphragm pump</p><p>In detail</p><p>Type B (a-single head / b parallel connection / C series connection)</p><p>U for valve plate (type I / U / T)</p><p>12 voltage (12V / 24V)</p><p>Related Products: </p><p>diesel fuel pump, </p><p>submersible pump, </p><p>peristaltic pump, </p><p>well pump, </p><p>submersible pump, </p><p>fuel transfer pump, </p><p>intelligent peristaltic pump, </p><p>refrigerant vacuum pump, </p><p>vacuum pump, </p><p>water circulating pump, </p><p>coffee machine pump, </p><p>diaphragm pump, </p><p>whirlpool circulation pump</p>

• Air flow: 12L / min-16l / min
• Front pressure: 0.12mpa; 0.16Mpa
• Negative pressure: 68kpa; 90Kpa
• Operating temperature: 0 ~ 50
• Humidity: less than 80%
